Why Existing Slabs Need Strengthening

Concrete floor slabs are among the most heavily stressed elements in any structure. Over a building's service life, the demands placed on slabs often change.

Whatever the trigger, engineers face the same fundamental question: how can the slab's load-carrying capacity be increased without full demolition and replacement?

This guide covers the full range of slab strengthening methods available to engineers — from traditional techniques to modern composite systems — with a practical look at when each approach makes the most sense.

Before selecting a method, it is essential to understand what the slab needs and how it might fail.

Common Drivers

• Increased live loads — change of building use, heavier equipment, new code requirements

• Corrosion of internal reinforcement — chloride ingress from de-icing salts or marine exposure

• Concrete degradation — carbonation, sulfate attack, freeze-thaw damage, alkali-silica reaction

• Design or construction deficiencies — outdated code assumptions, material substitutions, insufficient rebar cover

• Post-tensioning losses — creep, shrinkage, or tendon corrosion reducing effective prestress

Slab Strengthening Methods

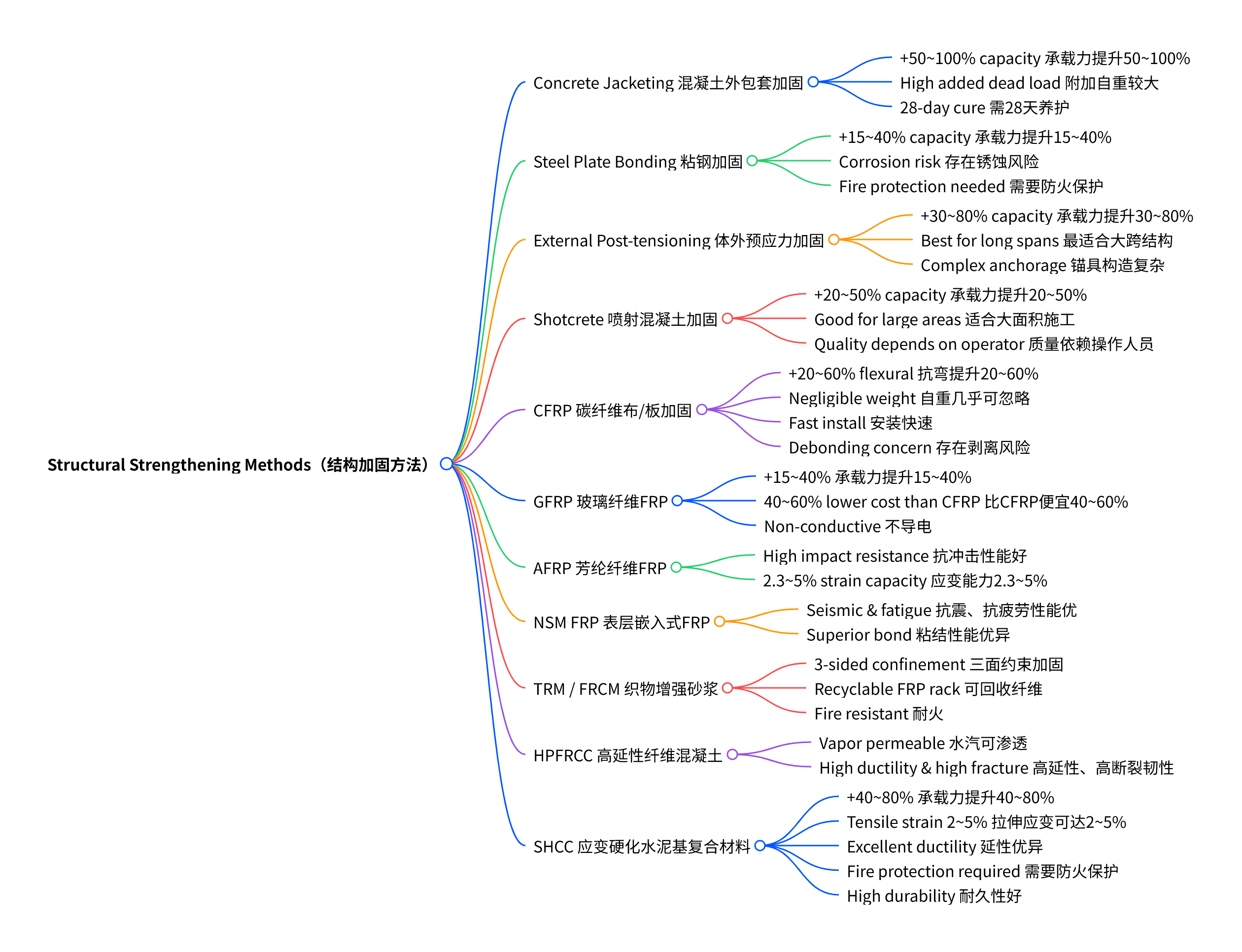

Method Comparison Summary

Choosing the Right Method

There is no single "best" method for every slab strengthening project. The right choice depends on:

Structural requirements. How much additional capacity is needed? Is the governing failure mode flexure, punching shear, or one-way shear? Does the slab need more stiffness, more strength, or both?

• Access constraints. Can the slab be accessed from below, from above, or both? Is the floor above occupied? Is soffit access clear, or do ceiling systems need to be removed?

• Environmental conditions. Is the slab exposed to moisture, chemicals, chlorides, or high temperatures? These factors affect the durability of the strengthening system.

• Fire rating requirements. Does the strengthening system need to maintain its structural contribution during a fire event? Inorganic systems (TRM, shotcrete, UHPFRC) have inherent fire resistance; epoxy-based systems (CFRP, GFRP, AFRP) require protective coatings.

• Schedule and occupancy. How quickly must the strengthening be completed? Can the building or area be vacated during construction? For occupied buildings, lightweight FRP systems offer a decisive advantage.

• Budget. Material costs, labor costs, and indirect costs (downtime, lost revenue) all factor into the total project cost. The cheapest material option may not be the most economical solution when installation time and building disruption are considered.

• Design code compliance. The chosen method must comply with applicable design standards (ACI 440.2R, fib Bulletin 14, EN 1992, local codes) and have documented test data to support the design assumptions.

Slab strengthening is a well-developed field with a broad range of proven methods. Traditional techniques — concrete jacketing, steel plate bonding, external post-tensioning, and shotcrete — remain valid choices for many projects, particularly where large capacity increases are needed or fire resistance is paramount. Advanced composite methods — CFRP, GFRP, AFRP, NSM FRP, TRM/FRCM, UHPFRC, and SHCC — offer compelling advantages where speed, minimal weight, reduced disruption, or specific performance characteristics (corrosion resistance, fire resistance, ductility) are important.
